Resolving canonicals

Every conformance resource in FHIR has a canonical URL, but that URL is an identifier and not necessarily a working web address. Simplifier’s resolve page turns a canonical into a link you can actually follow: enter a canonical on simplifier.net/resolve and you are taken to the documentation for that resource.

Where you end up is controlled by the documentation URL of the package or project that holds the resource. If none is set, Simplifier falls back to the resource page on Simplifier itself. See Documentation URL below to point resolving at your own IG instead.

Choosing a scope

A canonical is only unique within the specification that defines it, so the same canonical can occur in several packages and projects. The scope tells Simplifier where to look.

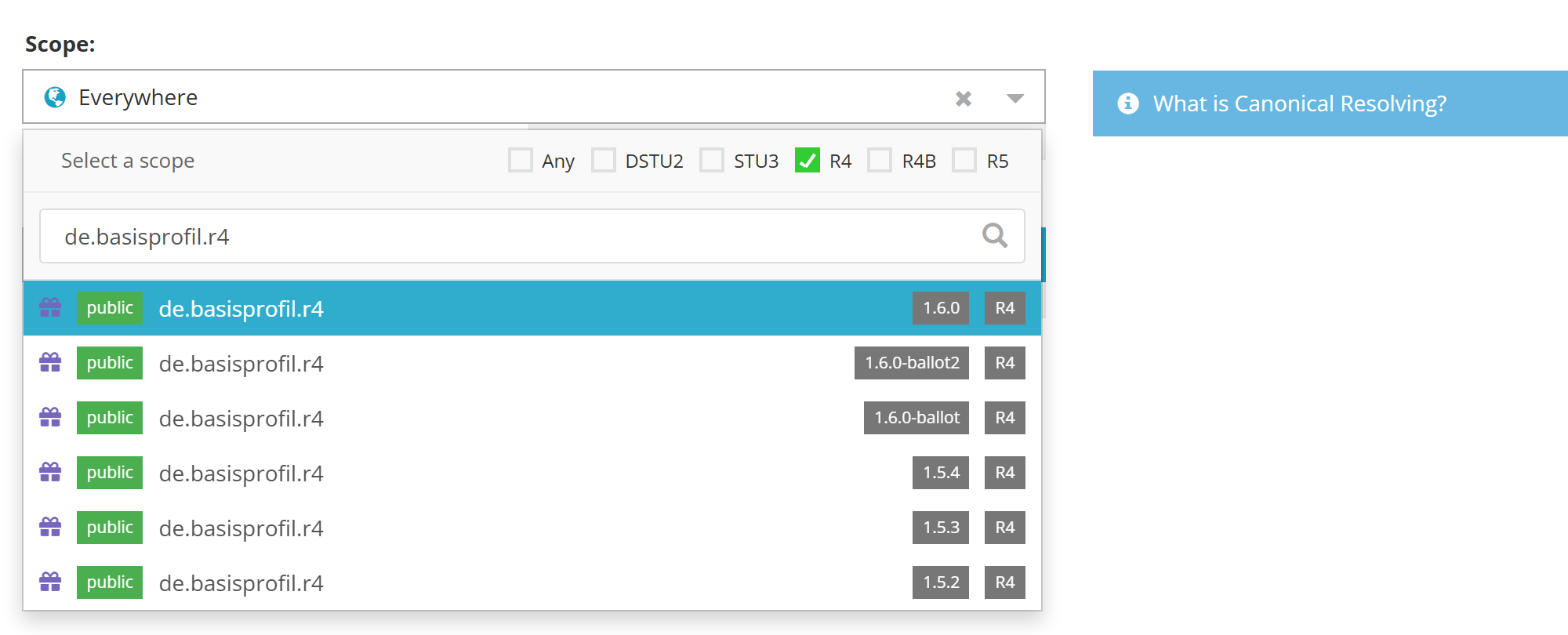

Selecting a package or project as the scope is best practice: it guarantees you land on the version you meant. Use the FHIR version filter (Any, DSTU2, STU3, R4, R4B, R5) to narrow the package list, then pick the version you want.

Leaving the scope on Everywhere also works, but for R4 and later it is unreliable, because the core packages and many national profiles reuse canonicals across FHIR versions. If you resolve without a scope, Simplifier defaults to hl7.fhir.r4.core 4.0.1.

Ranked matches

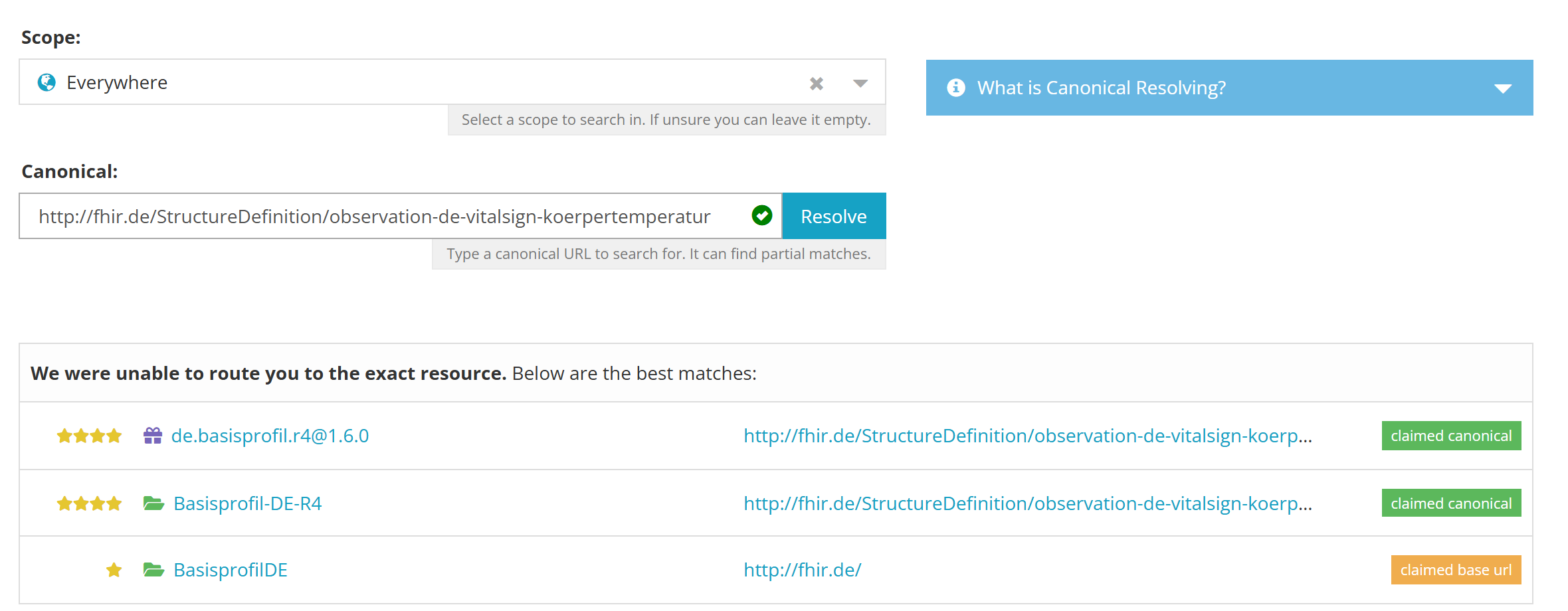

When Simplifier cannot route you to exactly one resource, it lists the candidates it found instead, ranked best first. Resolving http://fhir.de/StructureDefinition/observation-de-vitalsign-koerpertemperatur with no scope gives:

The stars are a relevance score. A candidate scores higher when its canonical was actually found in the scope (rather than only matching a claimed base URL), when the scope is a package rather than a project, and when the scope’s FHIR version matches the one you asked for. The label on the right tells you which kind of match it is:

Label	Meaning
claimed canonical	The canonical was found in this scope, and the scope has claimed the base URL. Most reliable.
unclaimed canonical	The canonical was found in this scope, but the base URL is not claimed.
claimed base url	The canonical itself was not found, but this scope has claimed its base URL. A likely owner.
conflict	More than one scope claims this base URL. Pick the scope explicitly.

Claiming your base URLs on your package or project makes your own resources rank first here. See Canonical claims.

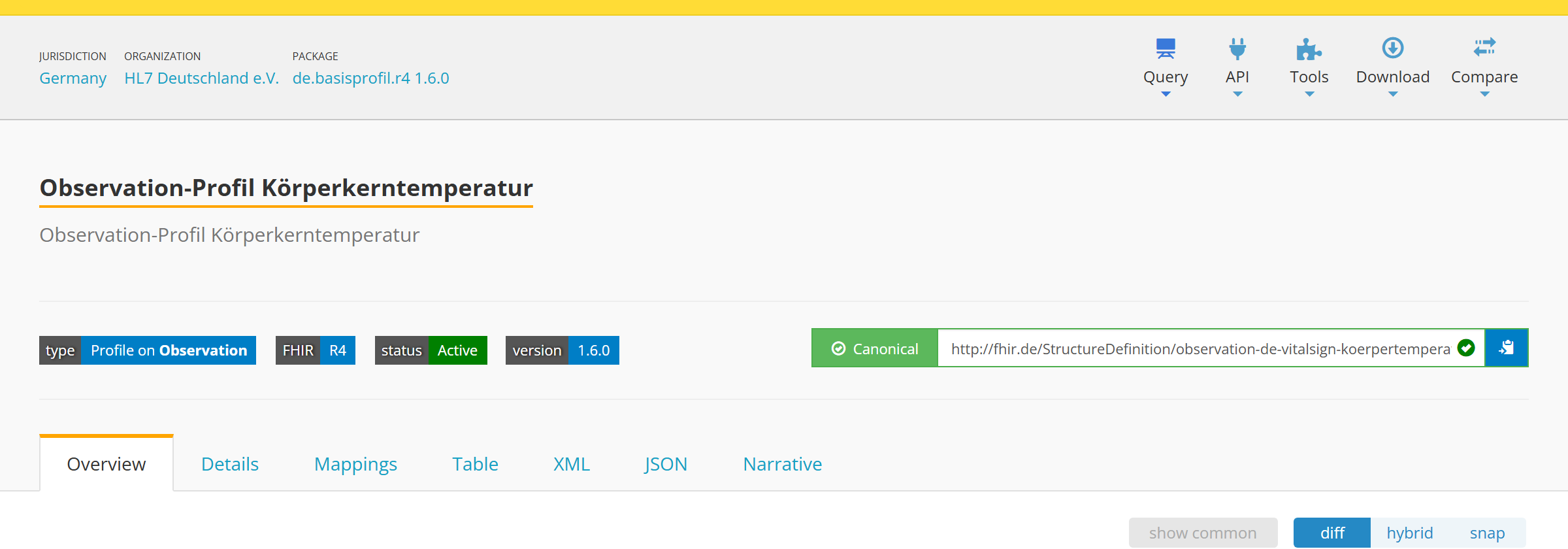

Picking the top match, de.basisprofil.r4@1.6.0, resolves straight to the profile:

Building a resolve URL yourself

Besides using the resolve page, you can construct a resolve URL directly, for example to put in your own documentation. This is the equivalent of the example above:

https://simplifier.net/resolve?scope=de.basisprofil.r4@1.6.0&canonical=http://fhir.de/StructureDefinition/observation-de-vitalsign-koerpertemperatur

The base is always https://simplifier.net/resolve?, followed by these parameters:

Parameter	Description
scope	Package name or project URL key, optionally with @ and a version: de.basisprofil.r4@1.6.0. Use @latest for the newest version of a package. For a live project the scope is always @current. When a scope is given, the FHIR version is derived from it.
fhirVersion	DSTU2, STU3, R4, R4B or R5. Only needed when you do not pass a scope.
canonical	The canonical URL of the resource you want to resolve to.
filepath	Resolve by path within the package instead of by canonical, for example package/StructureDefinition-Patient.json.
reference	Resolve by <type>/<id>, for example Patient/3.
name	Resolve by resource name.
best	Set best=true to let Simplifier pick the highest scoring scope for you instead of passing one. Handy when you do not know which package owns the canonical.
target	Override which documentation to send the user to: preferred (the publisher’s choice), source (the Simplifier page for the content), package, project or guide.
tab	Open a specific tab on the target page, for example tab=xml.

The scope can also go in the path instead of the query string: https://simplifier.net/resolve/de.basisprofil.r4@1.6.0?canonical=....

Note

The scope version must be an exact version or latest. Version ranges such as 1.6.x or ~1.6.0 are not supported; Simplifier falls back to the newest version of the package and shows a warning.

Documentation URL

The documentation URL determines where resolving lands. Set it if you publish your own IG and want readers to arrive there rather than on Simplifier.

To edit it, choose Settings on a resource page or on the project page, then Documentation URL. You can set it for a single resource, or once at project level for every resource in the project, because Simplifier applies it as a template.

Available template variables:

Variable	Value
{canonical}	The canonical URL of the resource.
{type}	The resource type, for example StructureDefinition.
{basetype}	The core base type the profile constrains, for example Patient.
{id}	The resource id.
{projectkey}	The project URL key as used in Simplifier’s own URLs.
{filekey}	The file URL key as used in Simplifier’s own URLs.
{filepath}	The path of the file within the package.

So a single project level template like https://example.org/ig/{type}-{id}.html works for every resource in the project.

If no documentation URL is set, Simplifier defaults to the resource page on Simplifier itself.
